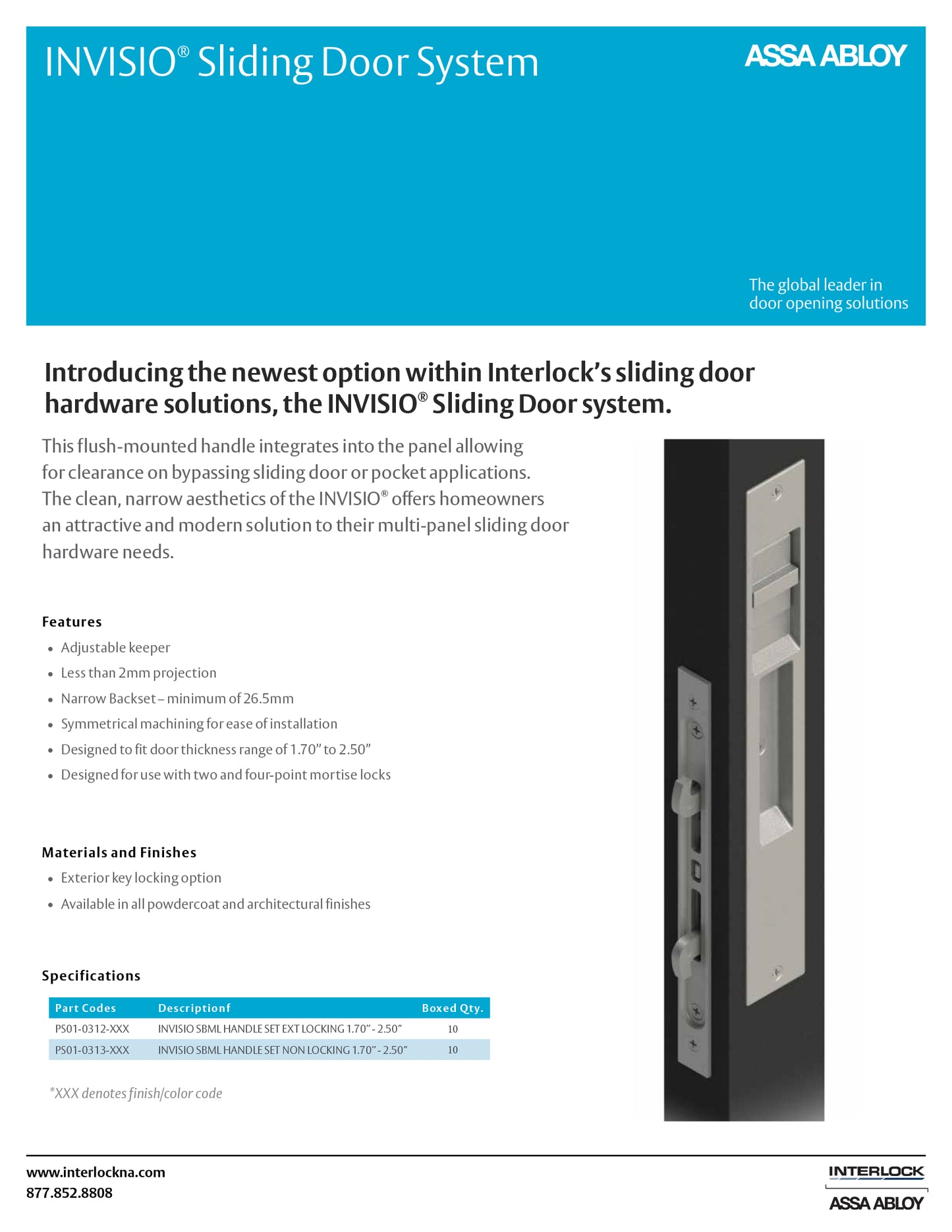

INVISIO® Sliding Door System

Introducing the newest option within Interlock’s sliding door hardware solutions, the INVISIO® Sliding Door system.

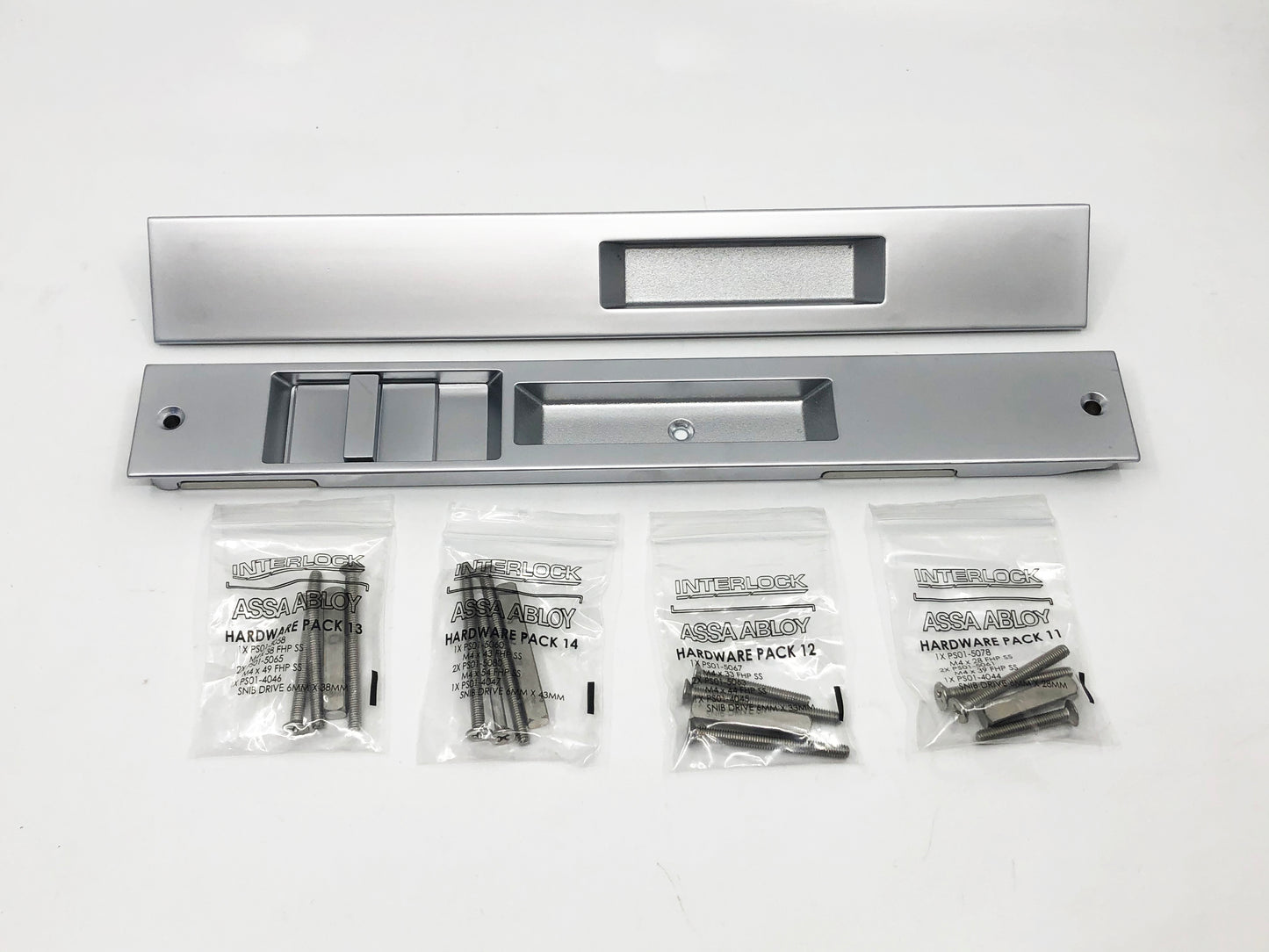

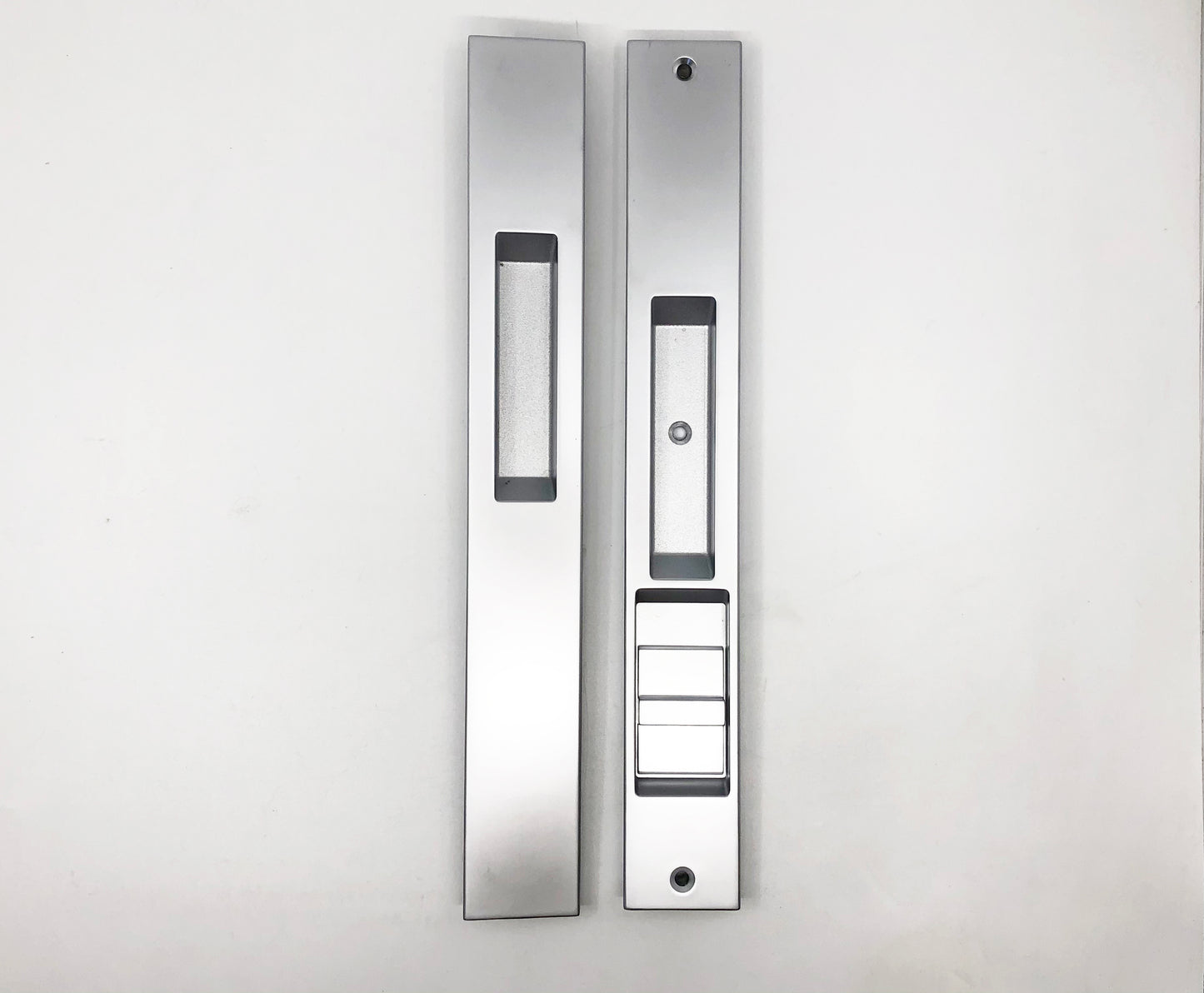

This flush-mounted handle integrates into the panel allowing
for clearance on bypassing sliding door or pocket applications.
The clean, narrow aesthetics of the INVISIO®offers homeowners
an attractive and modern solution to their multi-panel sliding door
hardware needs.

Features
• Adjustable keeper
• Less than 2mm projection

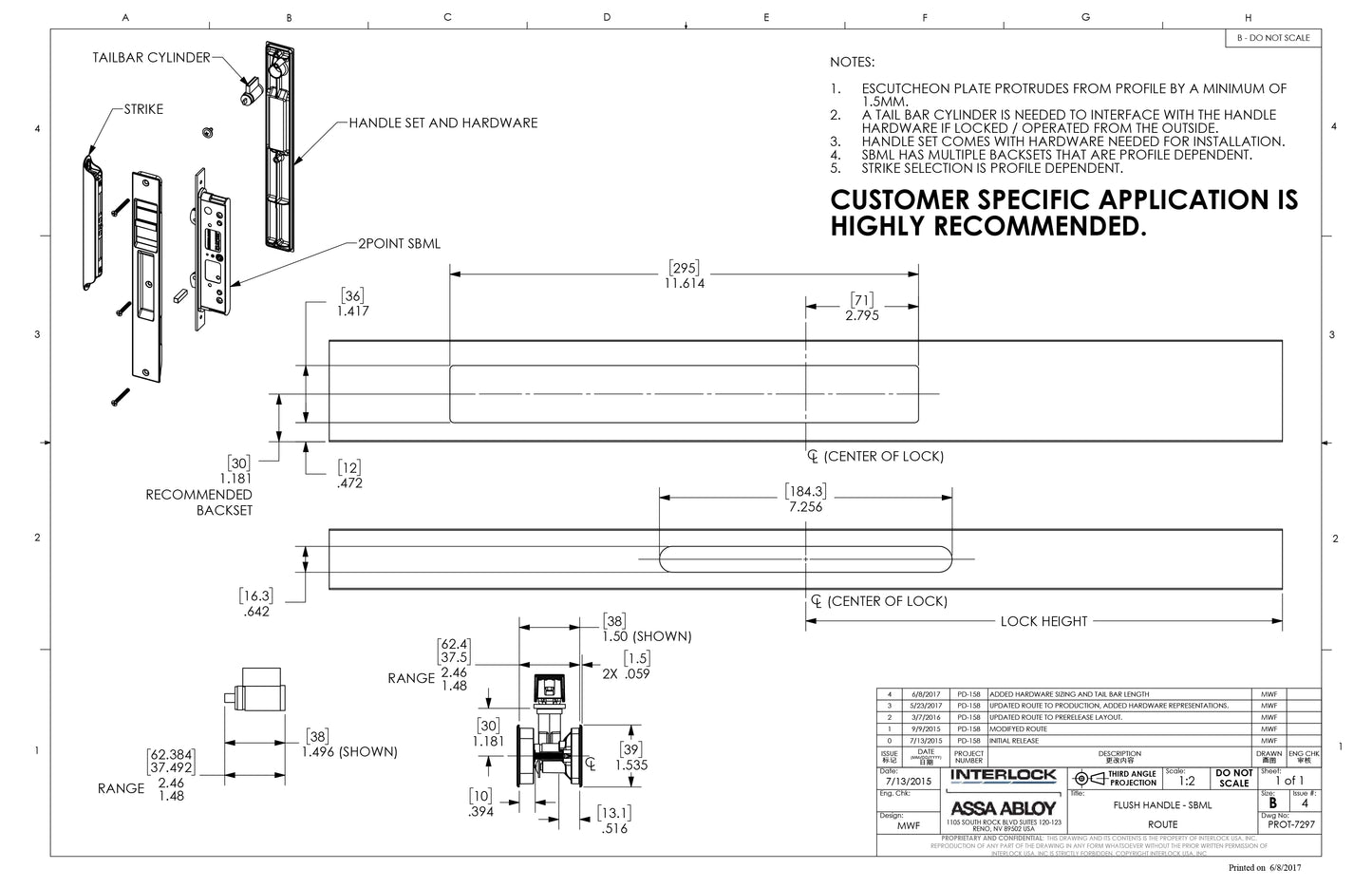

• Narrow Backset – minimum of 26.5mm
• Symmetrical machining for ease of installation
• Designed to fit door thickness range of 1.70” to 2.50”
• Designed for use with two and four-point mortise locks

Materials and Finishes
• Exterior key locking option
• Available in all powdercoat and architectural finishes
